MEP · 2013
Cayan Tower
Dubai Marina, UAE
The brief
73 floors, 306 m, a 1.08° twist on every slab.
Cayan Tower's structural 1.08-degree rotation per floor meant no two slabs were alike. MEP service locations differed on every level. Our teams re-engineered risers out of the vertical core into the rotating outer shell, resolving sleeve-and-opening geometry floor by floor to keep the tower's fresh-air and busbar risers feasible.
Scope of services
04
- 01Full MEP coordination against a rotating structural grid
- 02Busbar and fresh-air riser routing from core to twisted façade
- 03Floor-by-floor opening, sleeve and penetration design
- 04Simultaneous execution with structural and façade trades
- Height
- 306 m
- Floors
- 73
- Twist per floor
- 1.08°

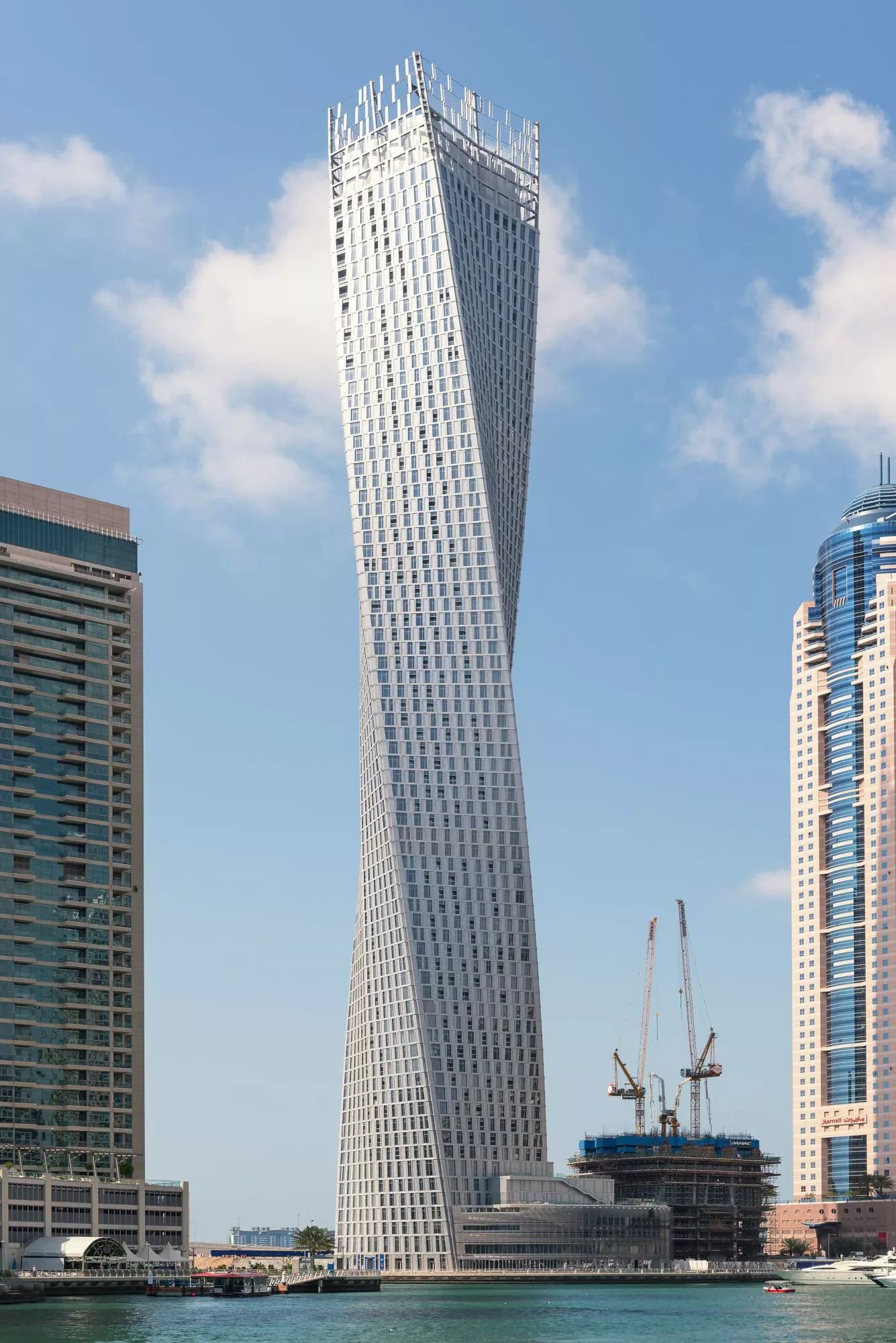

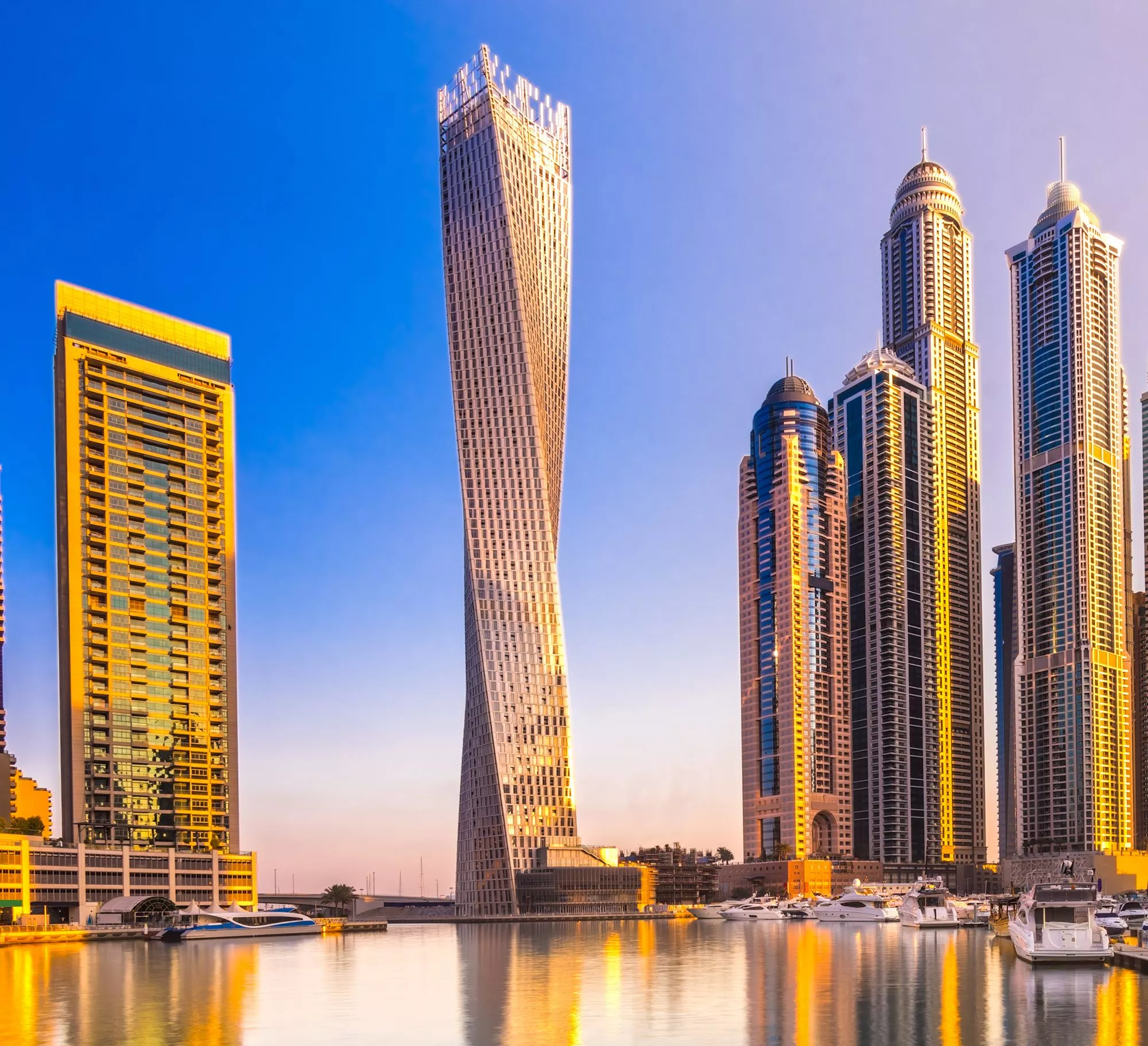

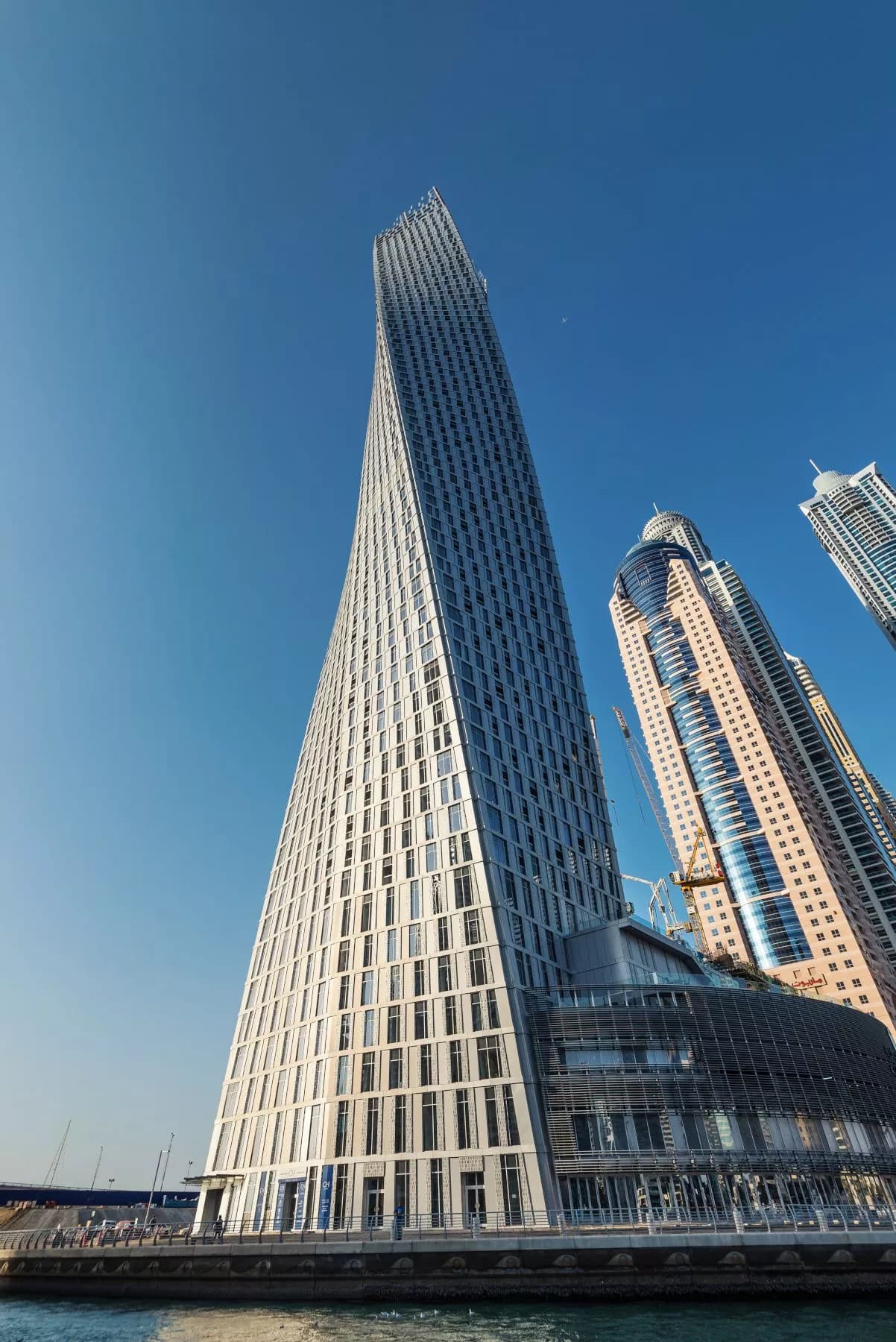

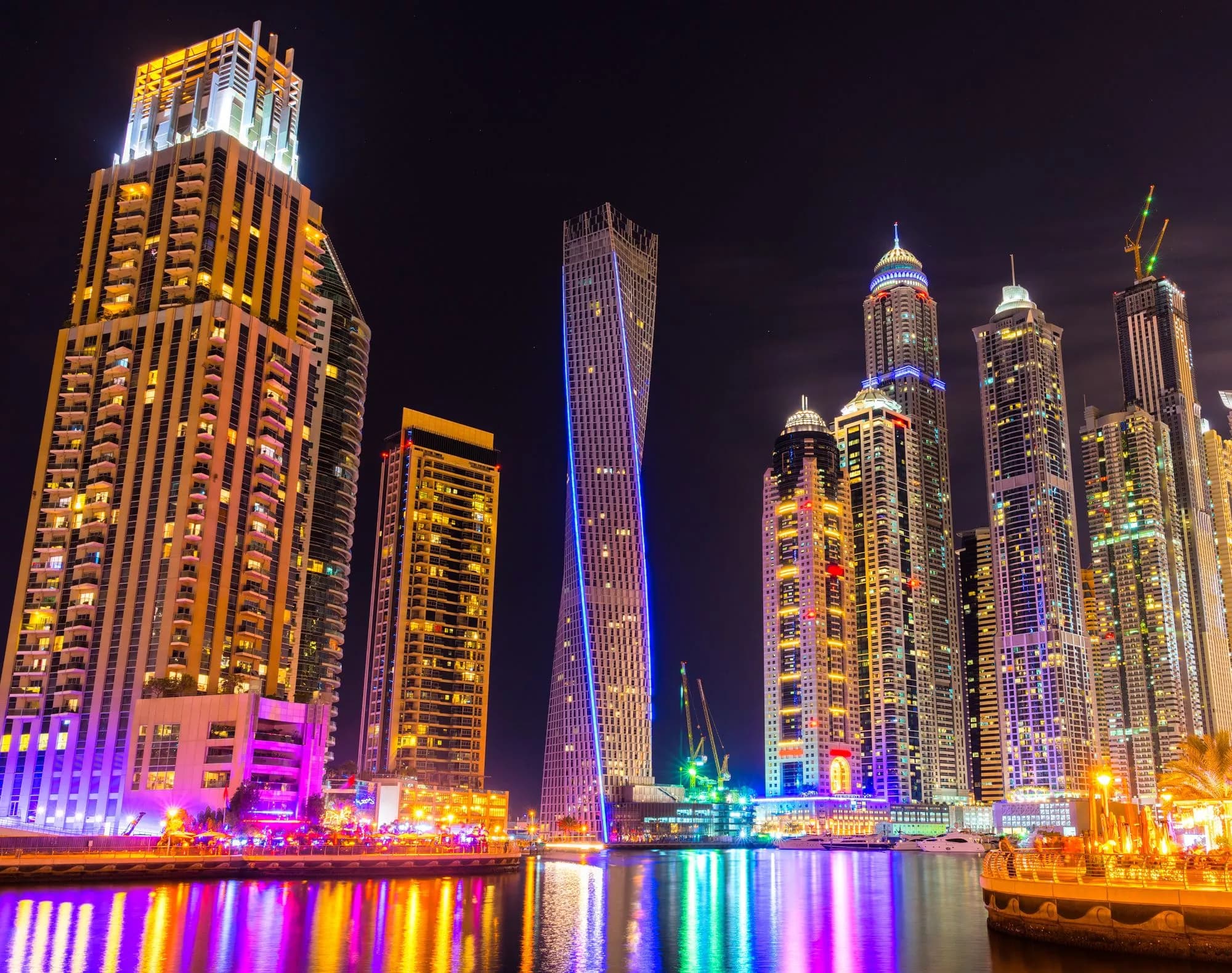

Gallery
Project frames.
04 views
